In this article, we will walk you through the steps for setting up GitHub Self-hosted Runners in Ubuntu virtual machine as a service for persistence runner installation.

The primary reason organizations to adopt GitHub self-hosted runners is to securely access internal, private networks such as databases, services, or virtual machines without exposing them to the public internet. By keeping workflows within their controlled infrastructure, they eliminate risks like accidental data leaks or compliance violations.

Additionally, self-hosted runners safeguarding sensitive code, credentials, or artifacts since runners are hosted on organization network.

A GitHub account.
An Ubuntu Virtual machine with root access with internet connectivity.
Basic familiarity with Linux commands and GitHub Actions.

Lets get started

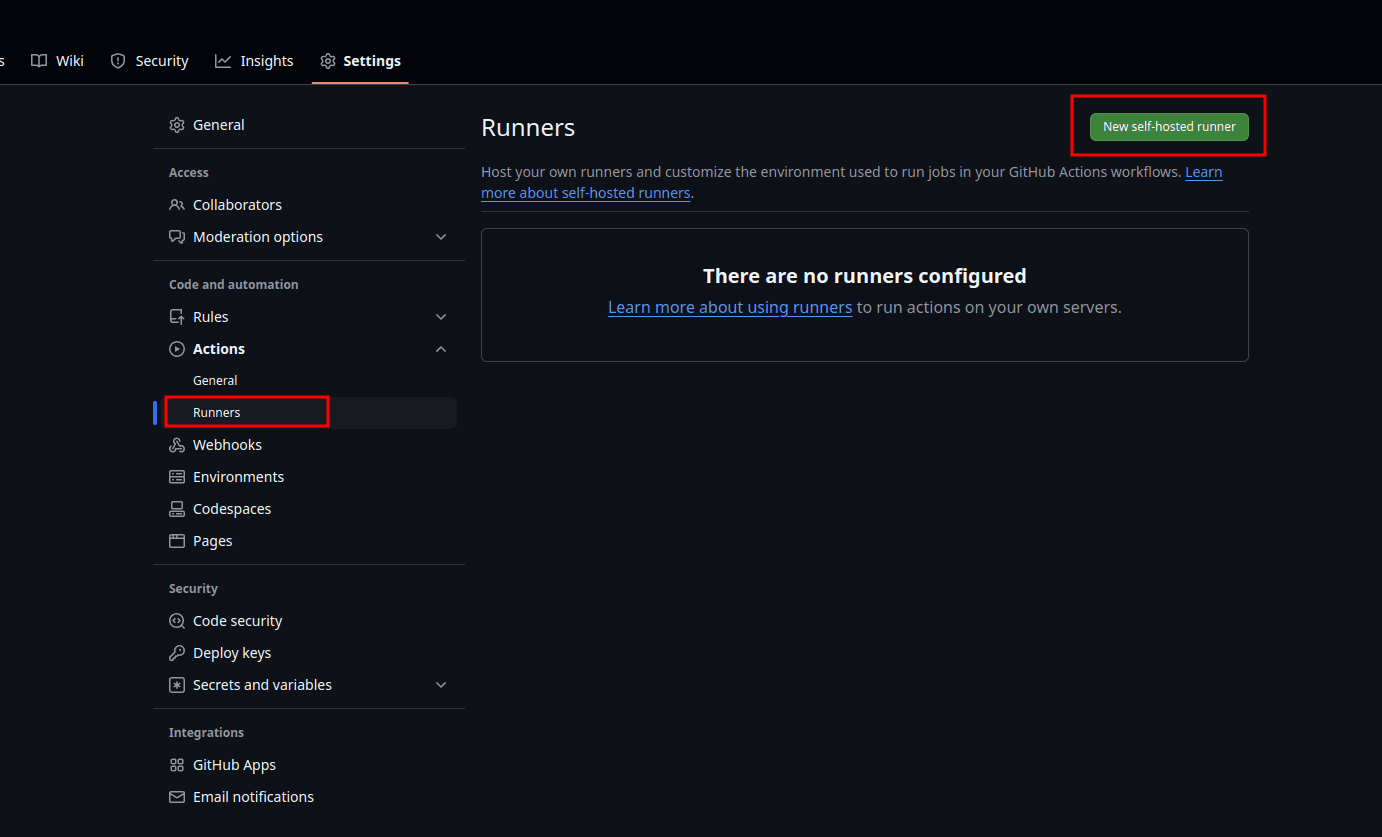

First go to your desired GitHub repository and go to Settings > Actions > Runners > New self-hosted runner.

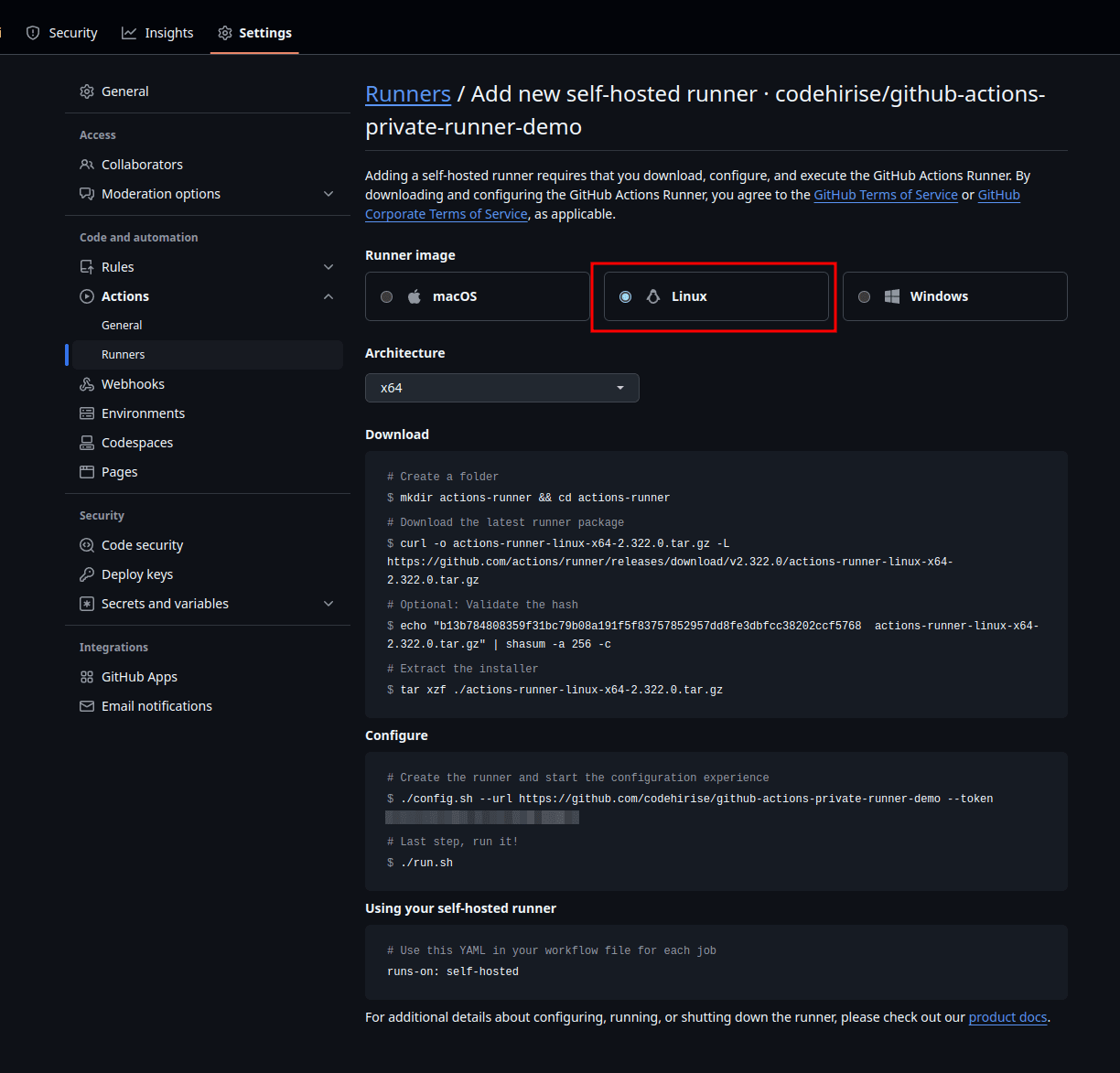

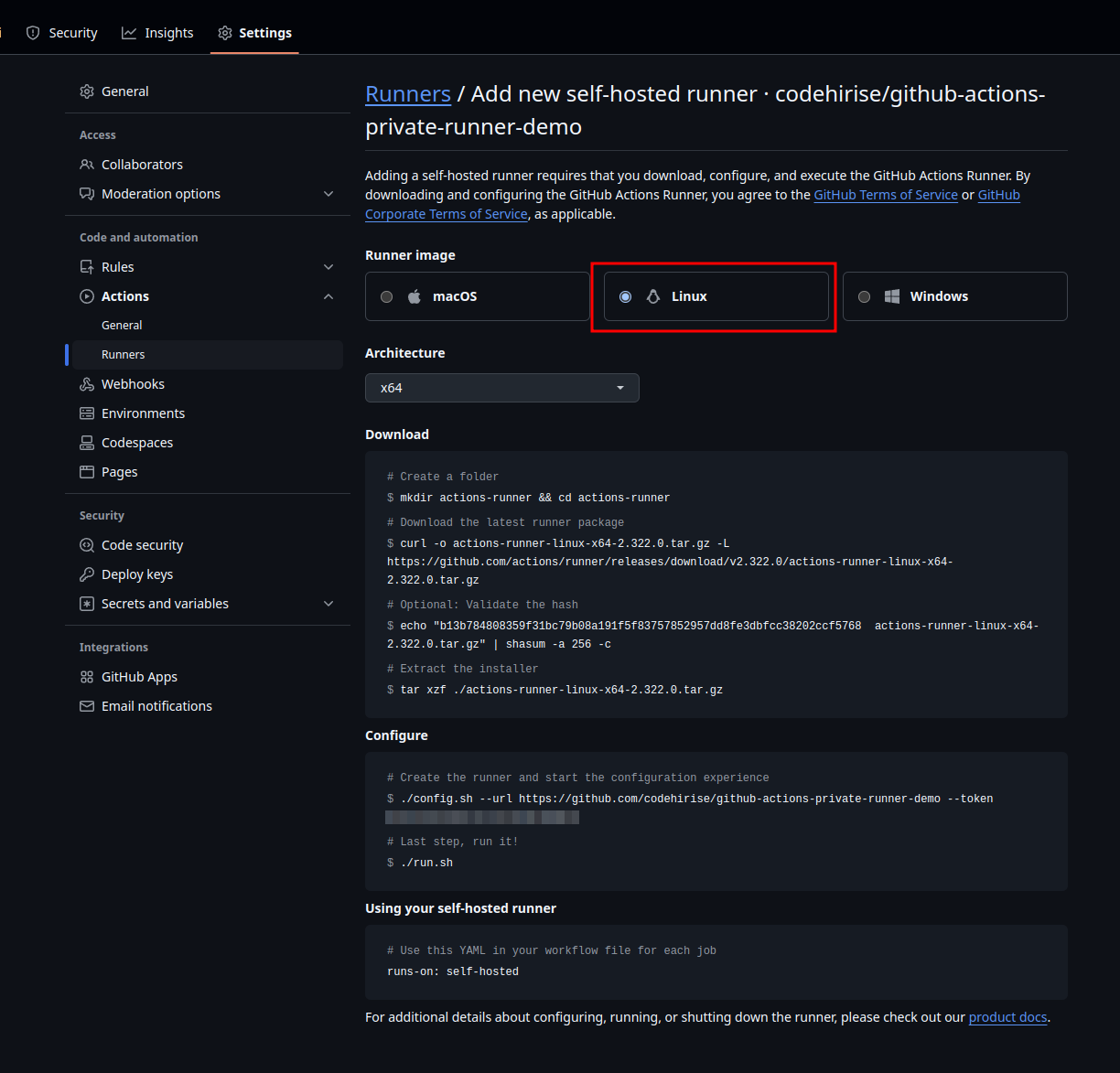

When you click New self hosted runner button you will get below page with all required steps.

It outlines downloading and setting up action runner but in our case we will take some extra steps to make sure our setup is more secure and configure runner as a systemd service.

we will create new system user user in our ubuntu vm.

Run below commad.

sudo useradd --system --shell /usr/sbin/nologin gh-action-runner-user

--system: Creates a non-interactive service account.
--shell /usr/sbin/nologin: Blocks SSH/login access.

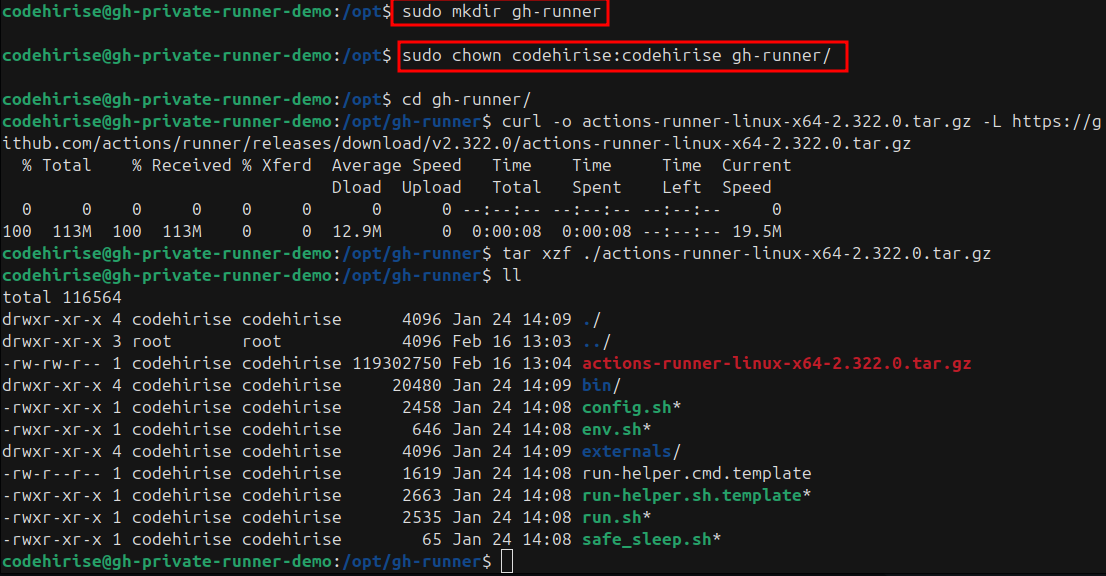

Run below command to create runners installation directory in /opt directory.

sudo mkdir /opt/gh-runner
cd /opt

Run below command to change ownership of the directory to our current owner for downloading and extracting files.

sudo chown codehirise:codehirise gh-runner/
cd gh-runner

then run below to extract action runner.

curl -o actions-runner-linux-x64-2.322.0.tar.gz -L https://github.com/actions/runner/releases/download/v2.322.0/actions-runner-linux-x64-2.322.0.tar.gz

optionally run below command to verify downloaded tar file.

echo "b13b784808359f31bc79b08a191f5f83757852957dd8fe3dbfcc38202ccf5768  actions-runner-linux-x64-2.322.0.tar.gz" | shasum -a 256 -c

Next run below command to extact all actions runner tar.gz file.

tar xzf ./actions-runner-linux-x64-2.322.0.tar.gz

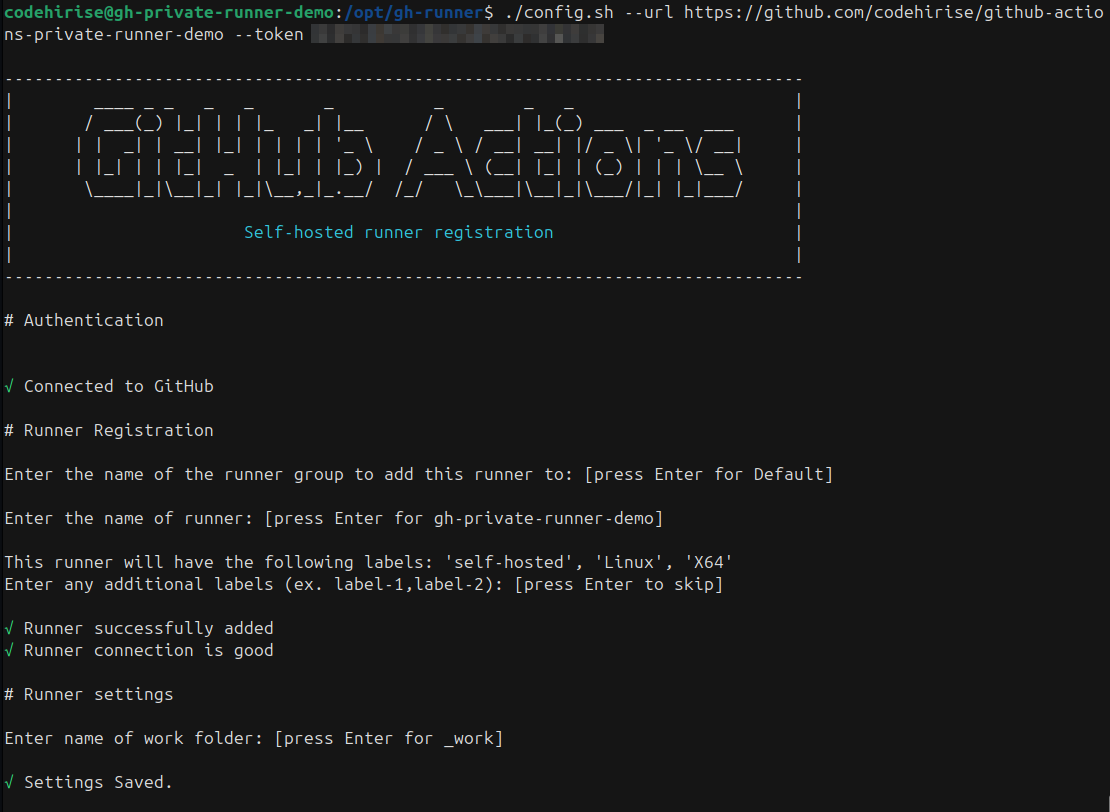

After downloading run below command to configure GitHub action runner.

./config.sh --url https://github.com/codehirise/github-actions-private-runner-demo --token YOUR_TOKEN

Here you will be prompled for some input like runner name and lables. You can enter them as you see fit.

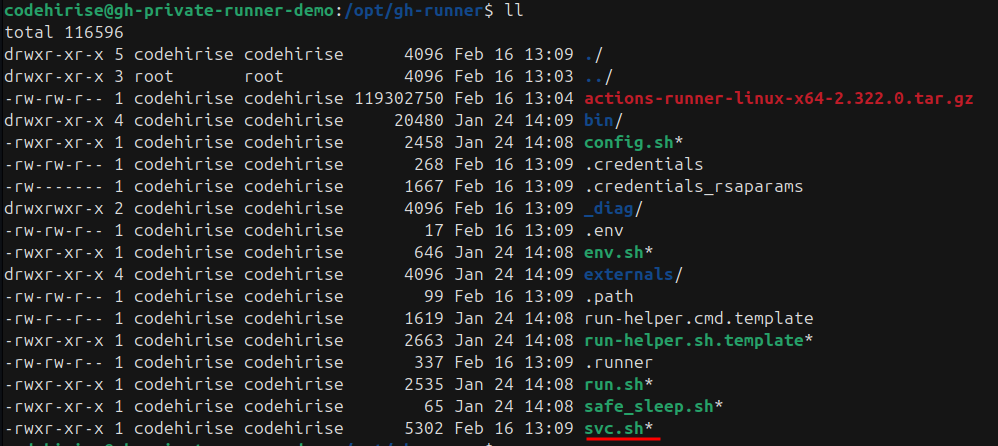

It will create some additional files like svc.sh which we will be using to configure action runner as a systemd service.

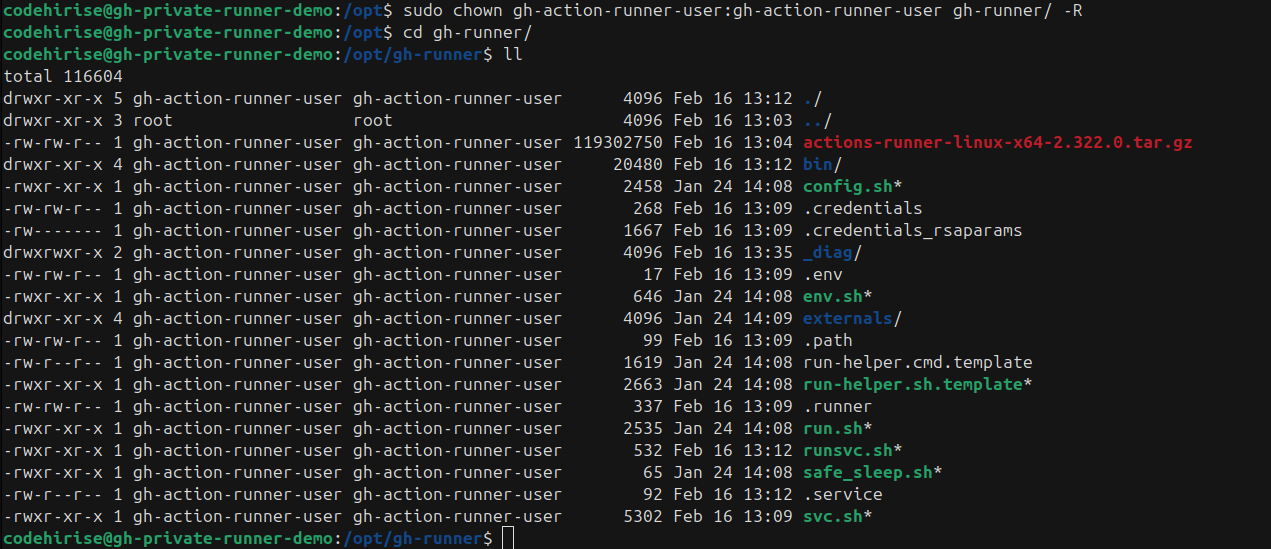

Before that make sure to change the ownership of the directory to our Linux service user which is gh-action-runner-user. Run below command

sudo chown gh-action-runner-user:gh-action-runner-user /opt/gh-runner/ -R

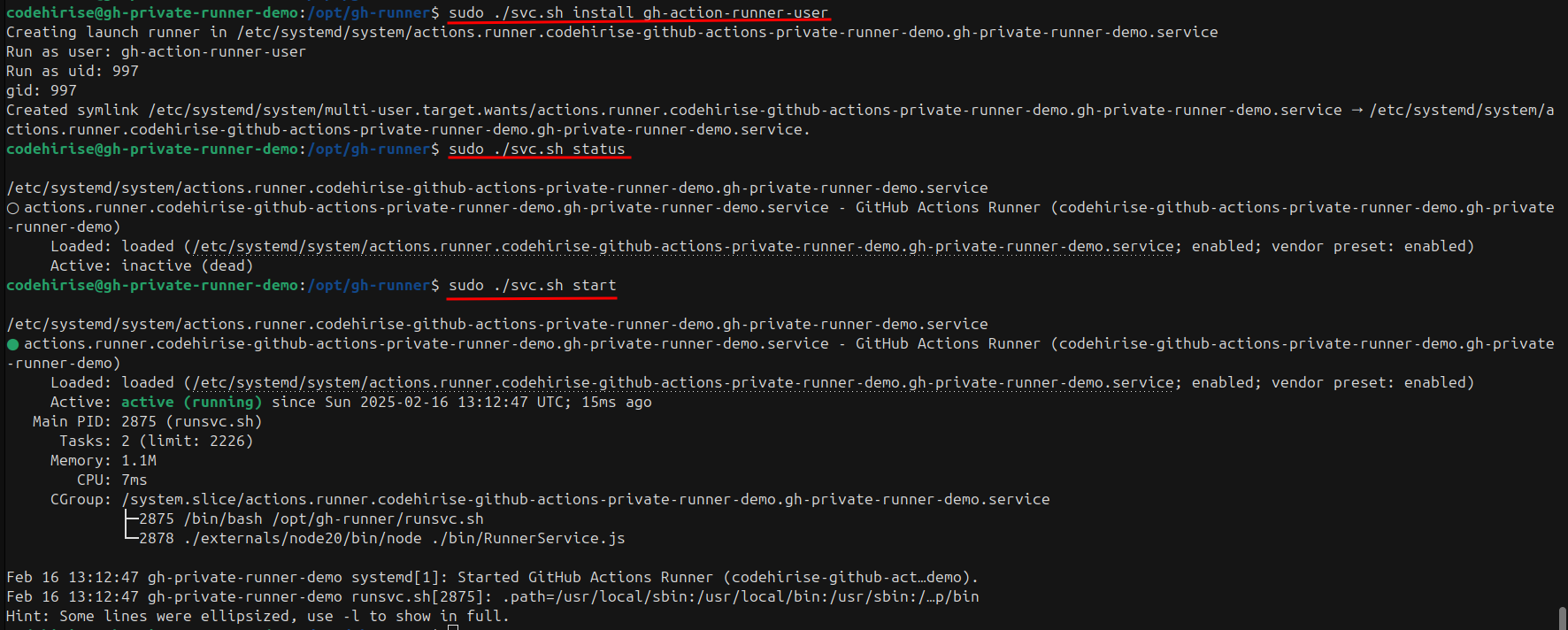

Next run below command to install systemd service for github action runner. This will install action runner as a systemd service and set user as gh-action-runner-user.

sudo ./svc.sh install gh-action-runner-user

Next you can run status command to check status

sudo ./svc.sh status

and run start command to start github action runner

sudo ./svc.sh start

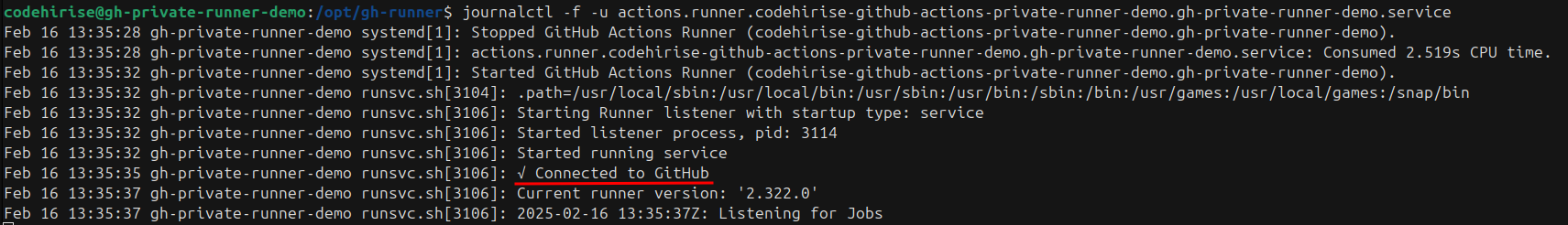

to check github action run related logs simply run

journalctl -f -u actions.runner.codehirise-github-actions-private-runner-demo.gh-private-runner-demo.service

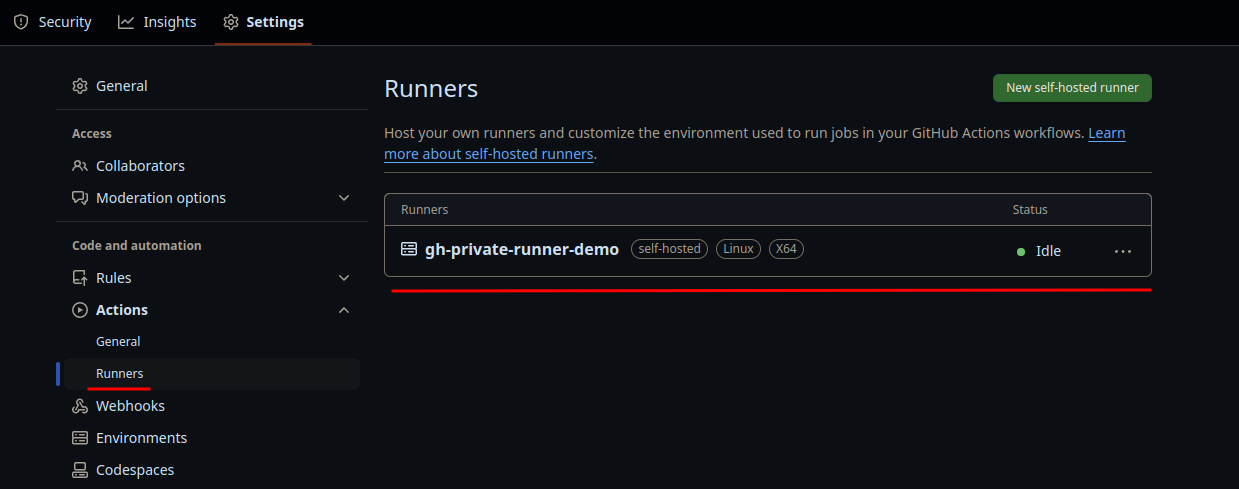

It will show connected to GitHub which indicate that we have successfully setup our GitHub action runner as a service. if you now visit runners page you can see our brand new github action self hosted runner is ready and waiting to pickup jobs.

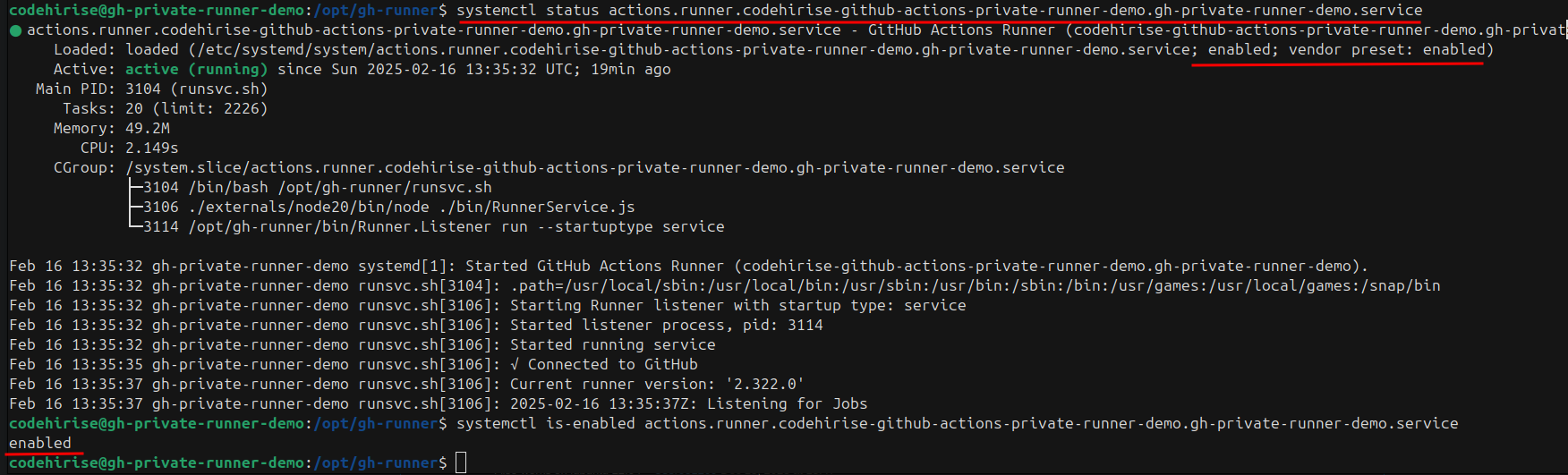

Action runner systemd service comes enabled by default so it will automatically start after a system reboot.

To use this runner in workflow , set runs-on in your github actions workflow file to selfhosted

Example workflow file below.

# This is a basic workflow to help you get started with Actions

name: CI

# Controls when the workflow will run
on:
  # Triggers the workflow on push or pull request events but only for the "main" branch
  push:
    branches: [ "main" ]
  pull_request:
    branches: [ "main" ]

  # Allows you to run this workflow manually from the Actions tab
  workflow_dispatch:

# A workflow run is made up of one or more jobs that can run sequentially or in parallel
jobs:
  # This workflow contains a single job called "build"
  build:
    # The type of runner that the job will run on
    runs-on: self-hosted

    # Steps represent a sequence of tasks that will be executed as part of the job
    steps:
      # Checks-out your repository under $GITHUB_WORKSPACE, so your job can access it
      - uses: actions/checkout@v4

      # Runs a single command using the runners shell
      - name: Run a one-line script
        run: echo Hello, world!

      # Runs a set of commands using the runners shell
      - name: Run a multi-line script
        run: |
          echo Add other actions to build,
          echo test, and deploy your project.

in action workflow we can see job ran on the runner we setup.

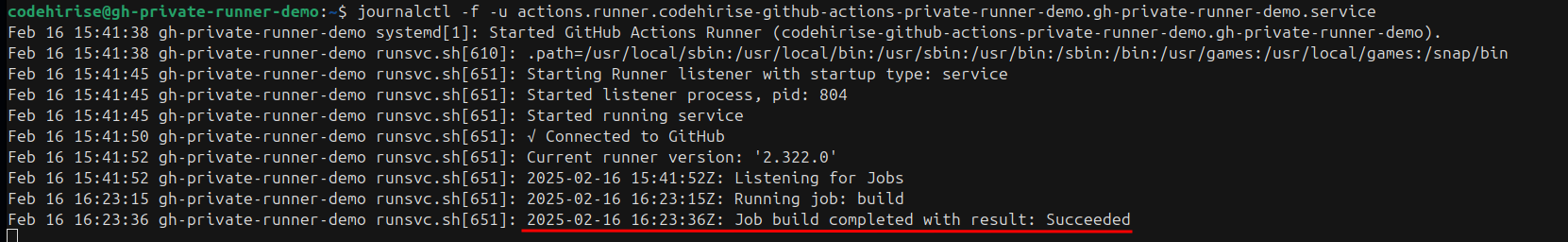

In our runner logs we can see job completed successfully

Self-hosted GitHub runners on Ubuntu VMs put you in control—locking down sensitive workflows and integrating seamlessly with private infrastructure. With this setup, your pipelines stay fast, secure, and entirely within your environment. Will this be your team’s next step toward DevOps adventure? 🚀
